Plastic Mold Making Cnc Milling Machine Dc1317

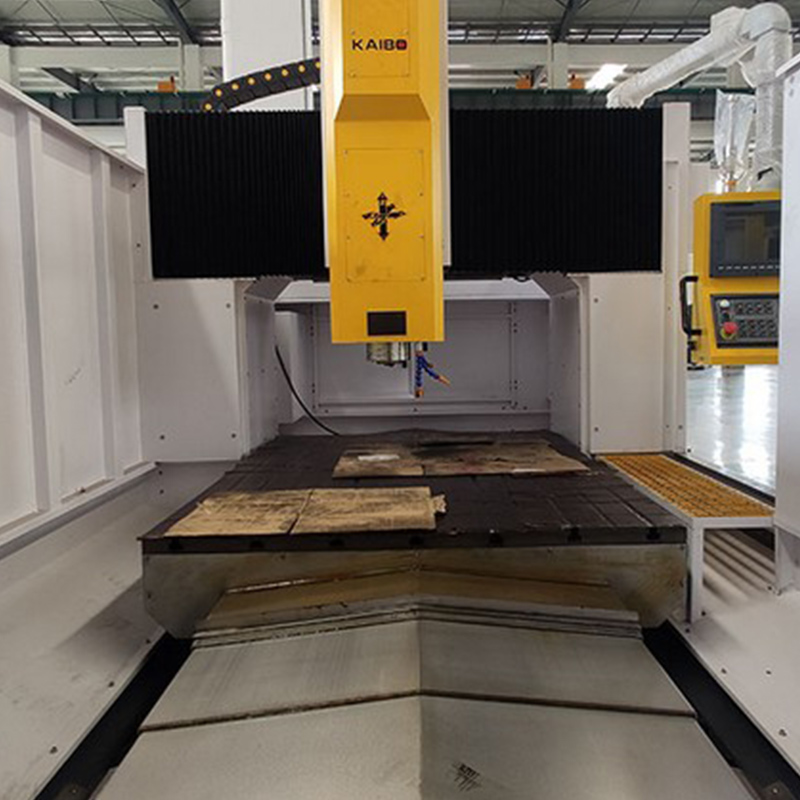

Plastic mold making CNC milling machine DC1317 is a Big type double column CNC milling center.
Plastic mold making CNC milling machine DC1317 is specially designed and produced for large-size and high-weight molds. The machine has stable transmission, high rigidity, a heavy body, and a large stroke, which can meet most of the mold production requirements on the market. BT40 mechanical spindle is standard, and BT50 spindle for heavy-duty cutting is also optional.


Product Details

Plastic mold making CNC milling machine DC1317 is with a working table of 1300*1700mm, which allow loading molds around 1 meter; the Z-axis stroke has reached 500mm, which can capable of processing most molds; it is equipped with a mechanical spindle to greatly increase the cutting speed; a 24-tool arm is optional Type tool magazine to improve processing efficiency.
Plastic mold making CNC milling machine DC1317 is a heavy-duty gantry type milling machine, it has a built-in screw type chip conveyor as standard, which can manually or automatically clean the internal environment of the machine tool for efficient cleaning.
Plastic mold making CNC milling machine DC1317 provides through spindle coolant (TSC) systems as an option which ensures the CNC coolant is going to exactly the right spot to make the most difference. With Through Spindle Coolant, performance can be greatly increased. Even higher chip loads can be tolerated, holes can be deeper, and peck drilling can be all but eliminated due to the improved evacuation of chips.
Another advantage for TSC machines: you can often run more flutes, particularly when profiling.
The whole series of KAIBO CNC milling machine all adopts C class HIWIN or PMI/Taiwan ball screw,
P class HIWIN or PMI/Taiwan linear guide, The guide (slider) adopts roller guide with a larger contact surface.

Product Features

Controller: Taiwan Syntec
X/Y/Z axis travel: 1300/1700/500mm
Spindle:BT40/11kw/12000rpm
Optional for BT50/11KW/6000 rpm spindle
Optional for 3/4/5axis
All linear guideways for enhanced rigidity and accuracy
Optional for TSC systems
Optional for loading automatic tool changer

Product Parameters

规格/机型 Parameter/Model DC-1317
精度
Accuracy
定位精度
Positioning accuracy
0.01mm
重复定位精度
Repeat positioning accuracy
0.005mm
工作台
Worktable
工作台尺寸
Worktable size
1300*1700mm
T型槽
T-slot size
7T-18-190mm
最大工作负重
Max. load
2000Kg
加工范围
Travel
X/Y/Z轴行程
X/Y/Z axis travel
1300/1700/500mm
龙门宽度
Gantry width
1360mm
横梁至工作台面距离
Beam to worktable
700mm
主轴鼻端至工作台面距离
Spindle nose to worktable
150-650mm
开门宽度
Door open width
1350mm
进给
Feed
快速进给 G00
Max. feeding speed G00
15m/min
切削进给 G01
Max. working speed G01
10m/min
X/Y/Z轴电机功率
X/Y/Z axis motor power
2900w/2900w/2900w
主轴
Spindle
主轴功率
Spindle motor power
11KW
主轴最高转速
Spindle Max. speed
12000rpm
刀具规格
Tool holder
BT40
主轴外径
Spindle diameter

通用参数
Common
工作电压及总容量
Power supply and total capacity
3P/380V/50Hz/30KVA
机床重量
Machine weight
12000Kg
外形尺寸
Dimension
4520*2600*2880mm
主要部件
Main parts
系统
Controller
新代 21MA/台湾
Syntec 21MA/Taiwan
交流伺服电机(驱动)
AC servo motor(Driver)
安川/日本
Yaskawa/Japan
主轴变频器
Spindle inverter
汇川/中国
Inovance/China
线轨
Linear guide way
45 上银,银泰/台湾
45 Hiwin,PMI/Taiwan
丝杠
Ball screw
5010/5010/4010 上银,银泰/台湾
5010/5010/4010 Hiwin,PMI/Taiwan
电子手轮
Electronic hand-wheel
EHDW-BA5S-1 远瞻/台湾
EHDW-BA5S-1 Future/Taiwan
润滑系统
Lubrication system
YET-A2P2 裕祥精机/台湾
YET-A2P2 ISHAN/Taiwan
油冷机
Oil Coolant Chiller
帕森托尔/中国
Parsonthor/China
空调
Air conditioner
EA-6AP 帕森托尔/中国
EA-6AP Parsonthor/China
气动系统
Pneumatic system
AirTAC/台湾
AirTAC/Taiwan
排屑器
Chip conveyor
内置螺旋排屑
Inside screw-type
水箱容积
Water tank capacity
323L
水泵功率
Water pump power
480W
刀库(选配)
Tool Magazine(Opt.)
刀库类型
ATC type
刀臂式刀库
Arm type
刀库容量
ATC capacity
24pcs



规格/机型 Parameter/Model DC-1113
精度
Accuracy
定位精度
Positioning accuracy
0.01mm
重复定位精度
Repeat positioning accuracy
0.005mm
工作台
Worktable
工作台尺寸
Worktable size
1100*1300mm
T型槽
T-slot size
6T-18-185mm
最大工作负重
Max. load
2000Kg
加工范围
Travel
X/Y/Z轴行程
X/Y/Z axis travel
1100/1300/400mm
龙门宽度
Gantry width
1140mm
横梁至工作台面距离
Beam to worktable
660mm
主轴鼻端至工作台面距离
Spindle nose to worktable
150-550mm
开门宽度
Door open width
1170mm
进给
Feed
快速进给 G00
Max. feeding speed G00
15m/min
切削进给 G01
Max. working speed G01
10m/min
X/Y/Z轴电机功率
X/Y/Z axis motor power
1800w/1800w/1800w
主轴
Spindle
主轴功率
Spindle motor power
7.5kw
主轴最高转速
Spindle Max. speed
12000rpm
刀具规格
Tool holder
BT40
主轴外径
Spindle diameter

通用参数
Common
工作电压及总容量
Power supply and total capacity
3P/380V/50Hz/20KVA
机床重量
Machine weight
7500Kg
外形尺寸
Dimension
3200*2450*2800mm
主要部件
Main parts
系统
Controller
新代 21MA/台湾
Syntec 21MA/Taiwan
交流伺服电机(驱动)
AC servo motor(Driver)
安川/日本
Yaskawa/Japan
主轴变频器
Spindle inverter
汇川/中国
Inovance/China
线轨
Linear guide way
45 上银,银泰/台湾
45 Hiwin,PMI/Taiwan
丝杠
Ball screw
4010 上银,银泰/台湾
4010 Hiwin,PMI/Taiwan
电子手轮
Electronic hand-wheel
EHDW-BA5S-1 远瞻/台湾
EHDW-BA5S-1 Future/Taiwan
润滑系统
Lubrication system
YET-A2P2 裕祥精机/台湾
YET-A2P2 ISHAN/Taiwan
油冷机
Oil Coolant Chiller
帕森托尔/中国
Parsonthor/China
空调
Air conditioner
EA-6AP 帕森托尔/中国
EA-6AP Parsonthor/China
气动系统
Pneumatic system
AirTAC/台湾
AirTAC/Taiwan
排屑器
Chip conveyor
内置螺旋排屑
Inside screw-type
水箱容积
Water tank capacity
220L
水泵功率
Water pump power
400W
刀库(选配)
Tool Magazine(Opt.)
刀库类型
ATC type
刀臂式刀库
Arm type
刀库容量
ATC capacity
24pcs
