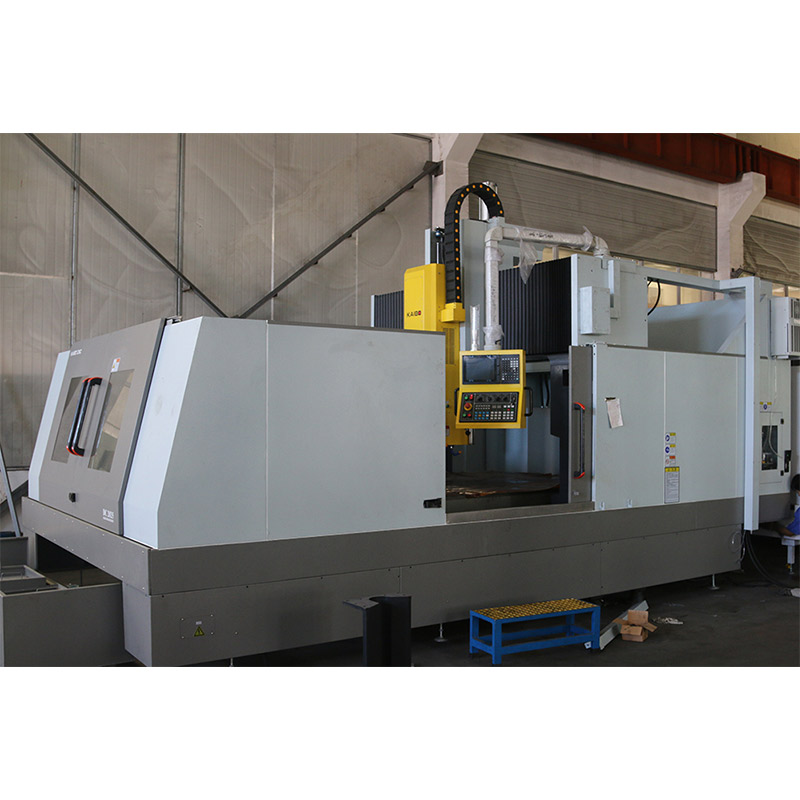

Gantry type CNC milling machine for metal processing DC2025 is a Big type double column vertical machining center.
Gantry type CNC milling machine for metal processing DC2025 is a medium and high-speed gantry CNC milling machine，specially designed for large molds. It changes the cognitive that engraving and milling machines cannot process large-size molds. The three-axis has a reasonable stroke of 5000*2000*720mm, and it has very good precision and high rigidity, which proves the exquisite craftsmanship level of KAIBO products.
Gantry type CNC milling machine for metal processing DC2025 is with a working table of 2500*2000mm, which is very sufficient to load most size of the mold in the market; the Z-axis stroke has reached 720mm, which can capable of processing of most molds. It even can be used as a mother machine to build machines for some plant.
Gantry type CNC milling machine for metal processing DC2025 is a classic heavy-duty gantry type milling machine with large working travel, it also has a built-in screw type chip conveyor as standard, which can manually or automatically clean the internal environment of the machine tool for efficient cleaning.
Gantry type CNC milling machine for metal processing DC2025 could be optional with Trough spindle coolant (TSC), which is very helpful for removing chips while drilling or tapping difficult holes and has become a staple in modern machining processes. KAIBO CNC provides TSC as a build option on our machining centers to make it easier for manufacturers to reduce their cycle times, preserve the quality of their tools, and maintain precise and clean holes on workpieces.
Controller: Taiwan Syntec
X/Y/Z axis travel: 2500/2000/720mm
BT40/11KW/8000 rpm spindle
Optional for 3/4/5axis
Optional for loading automatic tool changer
Optional for TSC
| 规格/机型 Parameter/Model | DC-2025 | |
| 精度 Accuracy |
定位精度 Positioning accuracy |
0.01/300mm |
| 重复定位精度 Repeat positioning accuracy |
0.015mm | |
| 工作台 Worktable |
工作台尺寸 Worktable size |
2000*2500mm |
| T型槽 T-slot size |
||
| 最大工作负重 Max. load |
3000Kg | |
| 加工范围 Travel |
X/Y/Z轴行程 X/Y/Z axis travel |
2000/2500/720mm |
| 龙门宽度 Gantry width |
2010mm | |
| 横梁至工作台面距离 Beam to worktable |
900mm | |
| 主轴鼻端至工作台面距离 Spindle nose to worktable |
135-855mm | |
| 进给 Feed |
快速进给 G00 Max. feeding speed G00 |
12m/min |
| 切削进给 G01 Max. working speed G01 |
8m/min | |
| X/Y/Z轴电机功率 X/Y/Z axis motor power |
4400w/4400w/4400w | |
| 主轴 Spindle |
主轴功率 Spindle motor power |
11KW |
| 主轴最高转速 Spindle Max. speed |
8000rpm | |
| 刀具规格 Tool holder |
BT40 | |
| 通用参数 Common |
工作电压及总容量 Power supply and total capacity |
3P/380V/50Hz/30KVA |
| 机床重量 Machine weight |
22000Kg | |
| 外形尺寸 Dimension |
6020*3400*3230mm | |
| 主要部件 Main parts |
系统 Controller |
新代 21MA/台湾 Syntec 21MA/Taiwan |
| 交流伺服电机（驱动） AC servo motor(Driver) |
安川/日本 Yaskawa/Japan |
|
| 主轴变频器 Spindle inverter |
汇川/中国 Inovance/China |
|
| 线轨 Linear guide way |
55 上银，银泰/台湾 55 Hiwin,PMI/Taiwan |
|
| 丝杠 Ball screw |
5510 上银，银泰/台湾 5510 Hiwin,PMI/Taiwan |
|
| 电子手轮 Electronic hand-wheel |
EHDW-BA5S-1 远瞻/台湾 EHDW-BA5S-1 Future/Taiwan |
|
| 润滑系统 Lubrication system |
YET-A2P2 裕祥精機/台湾 YET-A2P2 ISHAN/Taiwan |
|
| 油冷机 Oil Coolant Chiller |
帕森托尔/中国 Parsonthor/China |
|
| 选配 Optional |
主轴 Spindle |
|
| 刀库 ATC |
圆盘刀臂式刀库24刀位 Arm Type 24pcs 25000 | |
| 对刀仪 Tool setter |
美德龙/日本 Metro/Japan 3500 | |
| 排屑机 Chip conveyor |
12000 | |
VMC|CNC Double Column Milling Machine|Mold Making Machine|Graphite Machine|Roller Machine
Plastic Mold|Shoe Mold|Autoparts|Graphite|Roller|Hardware
The warranty period is 12 months. Not including man-made damage, improper use, and wear parts.
Within the warranty period, if parts with high prices need to be repaired or replaced, we can ship the part to the customer after receiving the old part. Freight costs and all customs fees should be paid by the customer.
After the warranty period, we promise lifelong maintenance. But the customer should buy the parts and pay for all costs arising, therefore.
