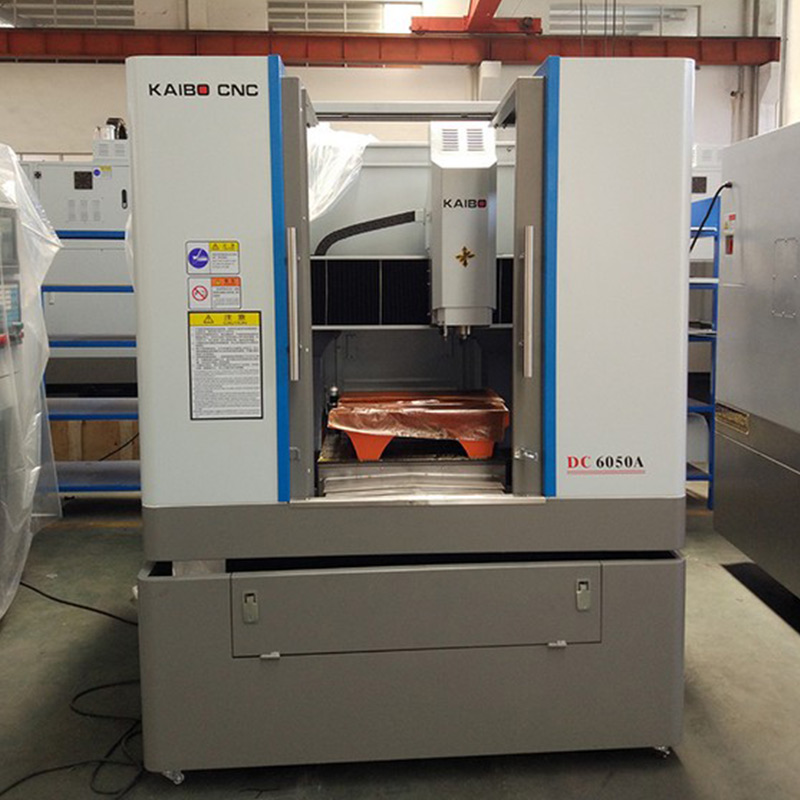

CNC engraving milling machine for copper electrode DC6050A is a small Gantry type CNC milling machine. As a small type CNC milling machine, besides its accuracy is unquestionable, its rigidity is also quite good.
CNC engraving milling machine for copper electrode DC6050A is widely for precise aluminum mold making, metal product making, or even precise steel engraving and milling.
DC6050A CNC engraving machine is a classic model of KAIBO machine. Based on DC6040D, It has increased the working strokes of the X, Y, and Z axes. It also adopts a full set of high-precision CNC special bearings, high-precision guide rails, and rolling screws, and imported servo motors to ensure High rigidity and machining accuracy.
CNC engraving milling machine for copper electrode DC6050A Equipped with a 3KW high-precision frequency conversion electric spindle, it is especially suitable for engraving and milling of mold cavities. It has unique performance in the processing of precision drip molds, hot stamping molds, copper electrodes, injection molds, cold stamping dies, and copper and steel molds.
Controller: Taiwan Syntec
X/Y/Z axis travel: 600/500/170mm
Spindle: ER20/3kw/21000rpm
Optional for 3/4/5axis
Optional for loading automatic tool changer
Product Parameters
| 规格/机型 Parameter/Model | DC-6050A | |
| 精度 Accuracy |
定位精度 Positioning accuracy |
0.01mm |
| 重复定位精度 Repeat positioning accuracy |
0.005mm | |
| 工作台 Worktable |
工作台尺寸 Worktable size |
600*530mm |
| T型槽 T-slot size |
5T-12-105mm | |
| 最大工作负重 Max. load |
250Kg | |
| 加工范围 Travel |
X/Y/Z轴行程 X/Y/Z axis travel |
600/500/160mm |
| 龙门宽度 Gantry width |
660mm | |
| 横梁至工作台面距离 Beam to worktable |
380mm | |
| 主轴鼻端至工作台面距离 Spindle nose to worktable |
170-330mm | |
| 开门宽度 Door open width |
600mm | |
| 进给 Feed |
快速进给 G00 Max. feeding speed G00 |
15m/min |
| 切削进给 G01 Max. working speed G01 |
10m/min | |
| X/Y/Z轴电机功率 X/Y/Z axis motor power |
750w/750w/750w | |
| 主轴 Spindle |
主轴功率 Spindle motor power |
3KW |
| 主轴最高转速 Spindle Max. speed |
21000rpm | |
| 刀具规格 Tool holder |
ER20(Φ3.17-Φ12) | |
| 主轴外径 Spindle diameter |
110mm | |
| 通用参数 Common |
工作电压及总容量 Power supply and total capacity |
3P/380V/50Hz/9KVA |
| 机床重量 Machine weight |
2500Kg | |
| 外形尺寸 Dimension |
1850*1800*1910mm | |
| 主要部件 Main parts |
系统 Controller |
新代 21MA/台湾 Syntec 21MA/Taiwan |
| 交流伺服电机（驱动） AC servo motor(Driver) |
安川/日本 Yaskawa/Japan |
|
| 主轴变频器 Spindle inverter |
汇川/中国 Inovance/China |
|
| 线轨 Linear guide way |
30 上银，银泰/台湾 30 Hiwin, PMI/Taiwan |
|
| 丝杠 Ball screw |
2505 上银，银泰/台湾 2505 Hiwin,PMI/Taiwan |
|
| 电子手轮 Electronic hand-wheel |
EHDW-BA5S-1 远瞻/台湾 EHDW-BA5S-1 Future/Taiwan |
|
| 润滑系统 Lubrication system |
YET-A2P2 裕祥精机/台湾 YET-A2P2 ISHAN/Taiwan |
|
| 油冷机 Oil Coolant Chiller |
选配帕森托尔/中国 Opt.Parsonthor/China |
|
| 空调 Air conditioner |
选配帕森托尔/中国 Opt.Parsonthor/China |
|
| 气动系统 Pneumatic system |
AirTAC/台湾 AirTAC/Taiwan |
|
| 排屑器 Chip conveyor |
— | |
| 水箱容积 Water tank capacity |
99L | |
| 水泵功率 Water pump power |
220W | |
| 刀库（选配） Tool Magazine（Opt.) |
刀库类型 ATC type |
直排刀库 Straight-row type |
| 刀库容量 ATC capacity |
6pcs | |
