5 Axis Sole Mold Milling Machine Dc6060A

5 axis Sole mold milling machine DC6060A is specially designed for our shoe mold manufacturer. It is based on the CNC milling machine DC6060A, loaded with a special design rotary table for shoe mold processing.

5 axis Sole mold milling machine DC6060A is cost-effective and use friendly, and now it is the high-demand type for the shoe mold industry.


Product Details

5 axis Sole mold milling machine DC6060A is developed for shoe mold industry at the request of clients. Now, this type won the honor of excellent product of shoe mold-producing industrial.
The title/rotary table is independently designed and developed by KAIBO. Benefit from our large customer base, we received many valuable feedback and processing technology from the shoe mold manufacturer.
It is now in the optimum state after continuous improvement on the customer’s actual processing requirement and application.

Product Features

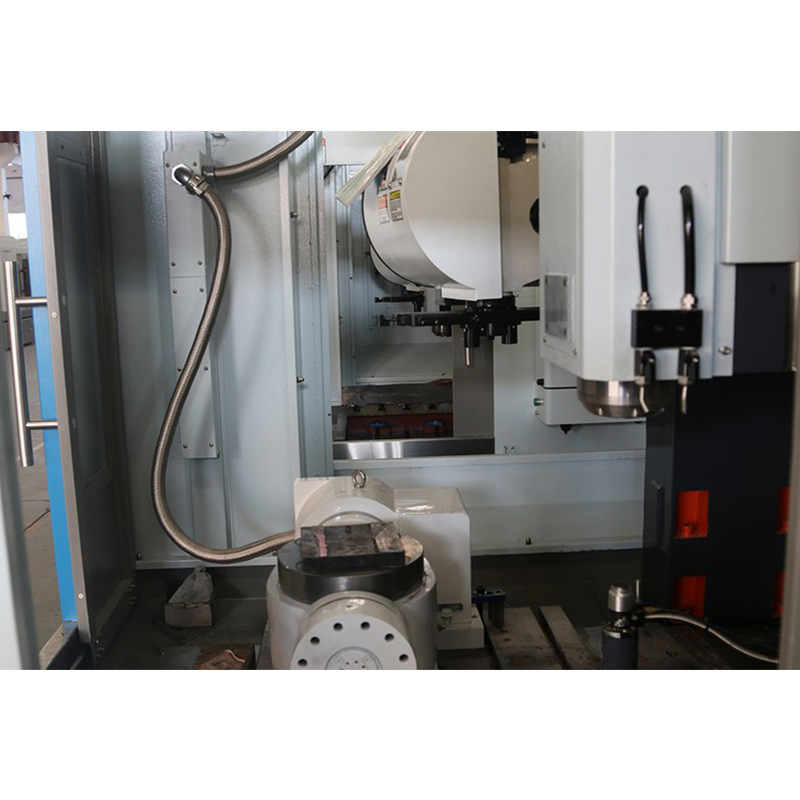

The rotary table of shoe mold-making milling machine is a “harmonic gear type” design, which could keep the accuracy the same as always. Which is very economic for a long time working.
The disk of the KAIBO rotary table is with a magnetic disc, which can grip the workpiece without any fixture. It is very convenient and effective in production.
Use-friendly for the 5axis beginner.
High accuracy
Solid rigidity

Product Parameters

规格/机型 Parameter/Model DC-6060A鞋模专用雕铣机(3+2)
精度
Accuracy
定位精度
Positioning accuracy
0.01/300mm
重复定位精度
Repeat positioning accuracy
0.005mm
工作台
Worktable
工作台尺寸
Worktable size
610*600mm
T型槽
T-slot size
5T-16-125mm
最大工作负重
Max. load
300Kg
自动夹具
Automatic Fixture
工作台直径
Rotary table diameter
225mm
旋转中心高
Height of rotary center
135mm
夹持方式
Fixed type
磁盘
Electromagnet
旋转角度
Rotary range
A轴
A axis
-120°~120° 根据工件大小而定
Depends on workpiece
C轴
C axis
0°~360°
驱动
Drive
伺服电机驱动
AC servo motor
加工范围
Travel
X/Y/Z轴行程
X/Y/Z axis travel
600/600/260mm
龙门宽度
Gantry width
700mm
横梁至工作台面距离
Beam to worktable
700mm
主轴鼻端至工作台面距离
Spindle nose to worktable
330-590mm
进给
Feed
快速进给 G00
Max. feeding speed G00
12m/min
切削进给 G01
Max. working speed G01
8m/min
X/Y/Z轴电机功率
X/Y/Z axis motor power
850w/850w/850w

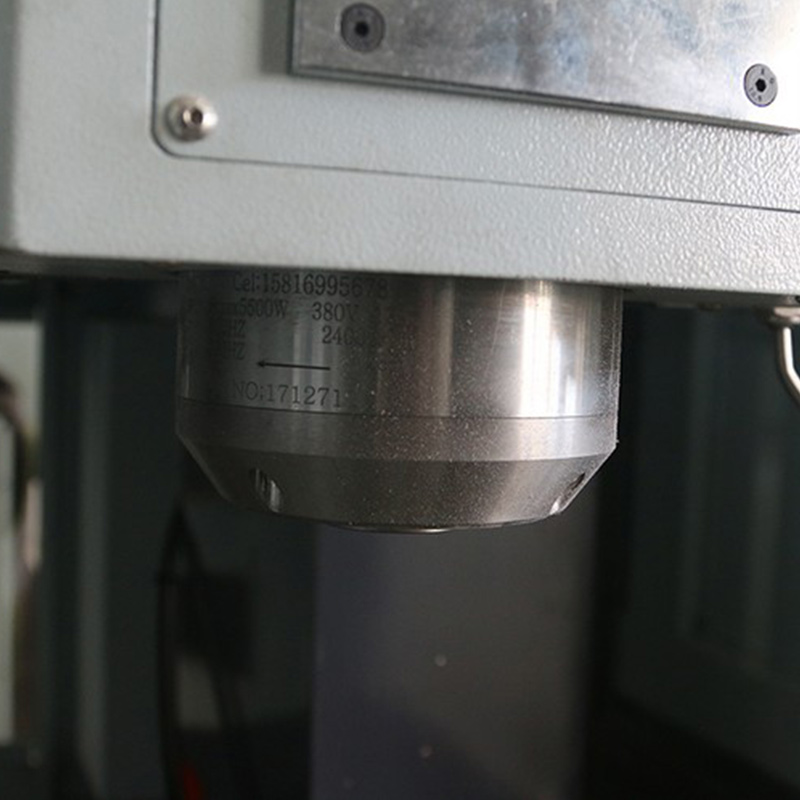

主轴
Spindle
主轴功率
Spindle motor power
5.5KW
主轴最高转速
Spindle Max. speed
24000rpm
刀具规格
Tool holder
BT30

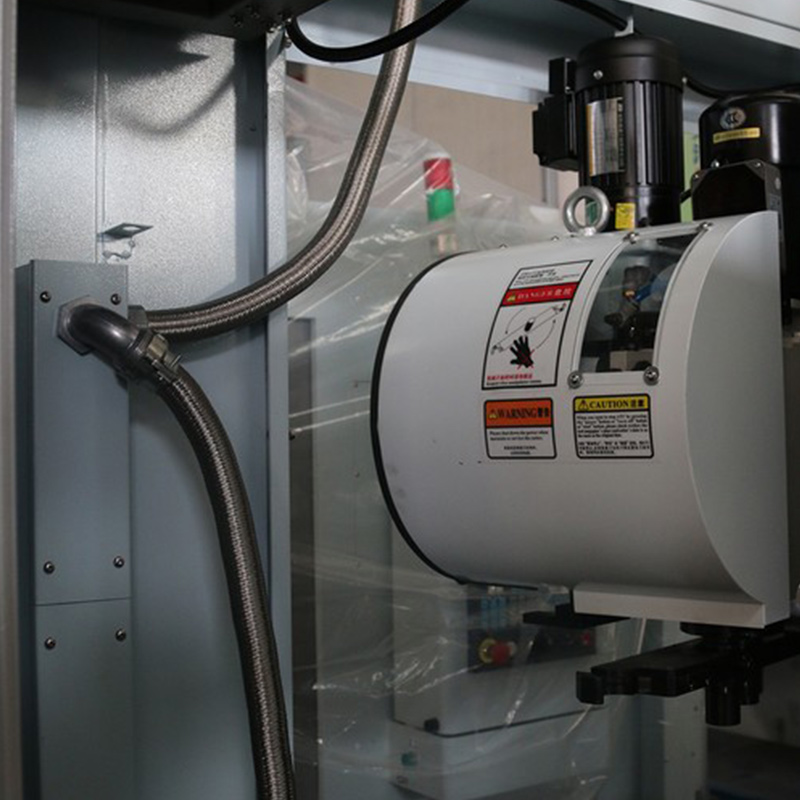

刀库
Tool Magazine
刀库类型
ATC type
刀臂式刀库
Arm type
刀库容量
ATC capacity
16pcs
通用参数
Common
工作电压及总容量
Power supply and total capacity
3P/380V/50Hz/12KVA
机床重量
Machine weight
4500Kg
外形尺寸
Dimension
2200*1800*2200mm
主要部件
Main parts

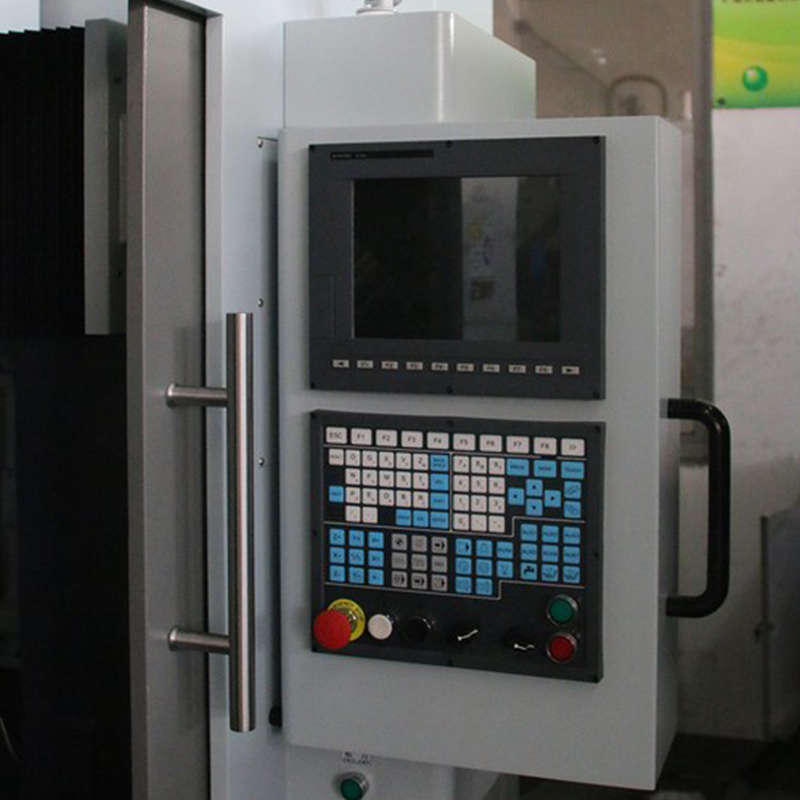

系统
Controller
新代 21MA/台湾
Syntec 21MA/Taiwan
交流伺服电机(驱动)
AC servo motor(Driver)
安川/日本
Yaskawa/Japan
主轴变频器
Spindle inverter
汇川/中国
Inovance/China
线轨
Linear guide way
30 上银,银泰/台湾
30 Hiwin,PMI/Taiwan
丝杠
Ball screw
2810上银,银泰/台湾
2810 Hiwin,PMI/Taiwan
电子手轮
Electronic hand-wheel
EHDW-BA5S-1 远瞻/台湾
EHDW-BA5S-1 Future/Taiwan
润滑系统
Lubrication system
YET-A2P2 裕祥精機/台湾
YET-A2P2 ISHAN/Taiwan
油冷机
Oil Coolant Chiller
帕森托尔/中国
Parsonthor/China

Application and After-Sales Service

VMC|CNC Double Column Milling Machine|Mold Making Machine|Graphite Machine|Roller Machine
Plastic Mold|Shoe Mold|Autoparts|Graphite|Roller|Hardware

The warranty period is 12 months. Not including man-made damage, improper use, and wear parts.
Within the warranty period, if parts with high prices need to be repaired or replaced, we can ship the part to the customer after receiving the old part. Freight costs and all customs fees should be paid by the customer.
After the warranty period, we promise lifelong maintenance. But the customer should buy the parts and pay for all costs arising, therefore.
